Server Rendered Product Page

Spring Boot 2
Thymeleaf
Web Components
StencilJS
Typescript
JSX
SASS
JSOUP
JUNIT testing
Lighthouse
Metrics
SEO
Localization
Java Based Web App - Front End Developer

The Product Folders were rehauled from a UX Perspective going from a multi-tab to a single-page experience with a new look and feel. From a development standpoint we also reworked the services and moved to a new technology stack on the front-end to make our project more agile and involve more Design resources to make code changes.

This was a large project requiring close collaboration with the back-end team as well as our UX Design team.

As a project it was complex because TI has a portfolio of over 80,000 products, each with its own associated specifications, training materials, as well as primary and secondary associated parts.

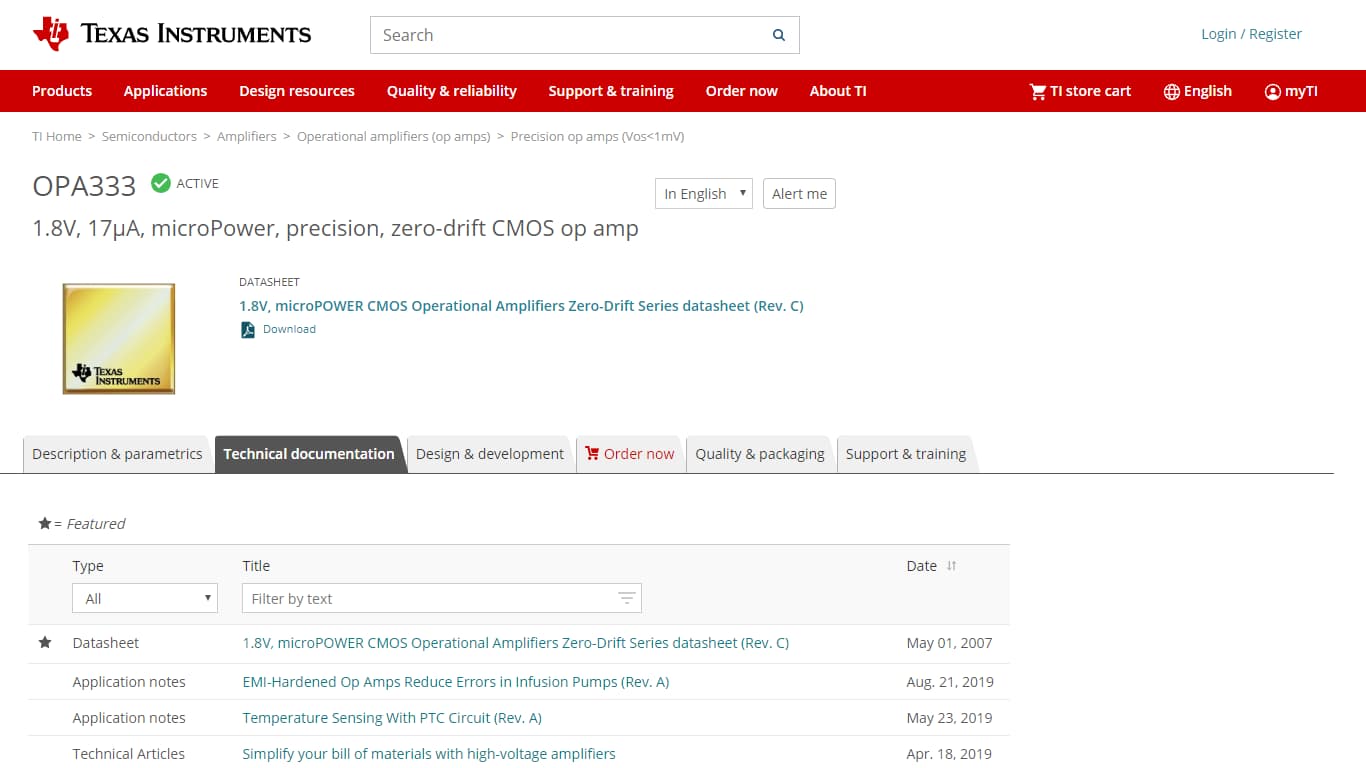

Before

Before changes

After

After changes

View an example page: here

Role

As a front-end developer, I contributed production code to implement the UI based on the business logic and UX requirements. I helped to wire up the controller with the service using Springboot and worked closely with the back-end team to coordinate when business logic was appropriate on the front-end or the back-end. I helped segment the initial Thymeleaf into fragments, broken out logically depending on the UI requirements.

I contributed to many reusable web components utilized across the page and targeted for other applications. Since each component is meant for use globally, it went through an approval process across, business, development, and design.

My contributions to requirements

  • Localization for Chinese and Japanese
  • Work with Metrics team and implement metrics tracking (GA)
  • Conform UI to Search engine optimization initiatives
  • Meet TI branding and guidelines
  • Contribute to reusable web components
  • Applied business logic requirements on Thymeleaf templates and
  • Integrated unit tests
  • Supported by IE11, Firefox and Chrome
  • Build out base HTML connected to JSON data from services provided by another team
  • Write integration tests using JSOUP and JUnit
  • Contributed to 8 patterns/web components providing SASS for shadow DOM

Example of deliverables

Implementation of the sticky-chapter-nav

View live: here

The sticky-chapter-nav is a web component I worked on that required animating into view when sticky is activated. I utilized CSS transitions in conjunction with the component’s @state in order to achieve the effect.

A challenge came with the requirement of supporting IE11, where I needed to make adjustments to the scrollTo function in order for IE11 to work correctly.

In addition, one of the design requirements is that there is a header above the sticky-chapter-nav that varies in content depending if the product is available for Order. By using slots on StencilJS we were able to control that content and keep business logic on the Thymeleaf layer.

Another challenge was correctly updating which link is active based on when the customer has scrolled past the anchor. I needed to work with the UX Team in order to define when exactly the link and make those changes to the code.

Running into bugs

One bug that was discovered during testing was that in some cases, the sticky-chapter-nav would be missing links.

Web Component race conditions I encountered a race condition as I was tasked to fix a bug that caused the sticky-chapter-nav to not populate with all of its chapter-nav links correctly.

Isolating the issue

Using Chrome Dev Tools with a throttled network and breaking on the render code for the web component, I isolated the moment the sticky-chapter-nav was querying for chapter-nav-anchors on the page and populating them as links. I determined that the chapter-nav-anchors did not exist in the DOM when the sticky-chapter-nav was rendered, given the asynchronous nature of how StencilJS web components are rendered/hydrated as the DOM is completing its page load.

The sticky-chapter-nav was querying for the chapter-nav-anchors but during slow page loads, the sticky-chapter-nav would render first before the chapter-nav-anchors is on the DOM, causing the sticky-chapter-nav to fail in populating the link.

Solution

The solution we ended up implementing was to listen for the document page load event during its component lifecycle when it is finished loading. This ensured that the DOM completely rendered before looking for the chapter-nav-anchors.
